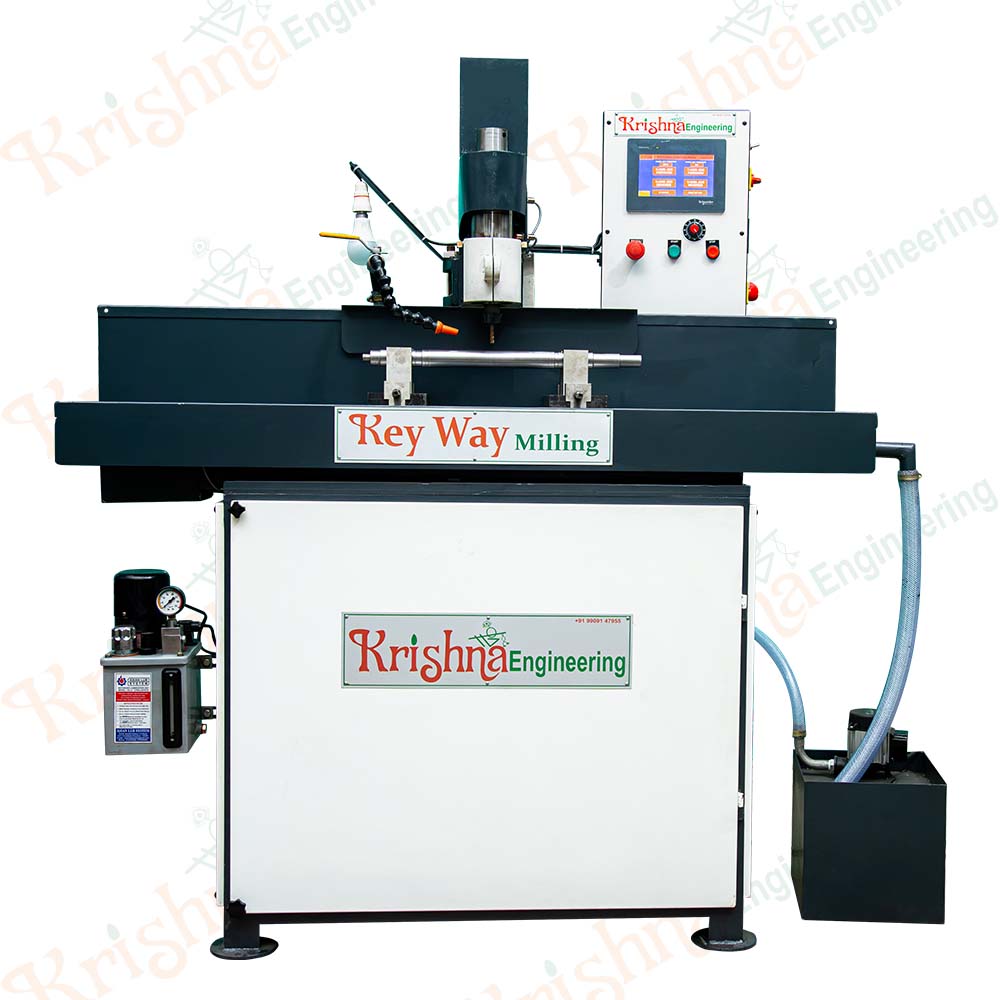

This is an Automatic Keyway Milling Machine specially designed for making keyway on shaft. it is very robust design SERVO MECHANISM with self centering vice. In this machine depth of cut is controlled by Servo motor. at desired final depth and spindle automatically reaches to this home position.
→ Depth of cut can be controlled by SERVO Mechanism
→ More tolling life
→ Maintenance free machine
→ Easily achieve P9 Tolerance
→ Provides smooth operation and friendly job settings
→ Easy to operate for any lay-man person
→ Very easy setting of length for making keyway
→ Tablet DIE - Punch Job Works Pharmaceutical Industry
→ Gear Box, Submersible Pump & Electric Motor Manufacturers
→ Engineering JOB Works
→ Textile, Printing & Packaging Machinery Manufacturers
→ Machine Tool Industry
| Max.Spindle Speed | 100RPM - 4000RPM |
|---|---|
| Table LENGTH | 1200 mm |
| Shaft Diameter | 5MM - 100MM |
| Maximum Length of Keyway | 3MM - 400MM |
| Keyway Size | 3MM - 15MM |
| Depth of Cut | 0.5MM - 3MM |
| Standard Collet | ER-20/25/32 |
| Coolant Pump | 0.15 |
| Total Power Consuption | Total 2.5 HP |
| Snyder Display | 7 Inch |
| Serwo Motor | 750 VOLT |
| 2800 RPM Motor | 1 HP / 1.5 HP |
| AUTO Pumps Lubrikeshn Oil | |
| 1+1 = 3 Keyway | 3 |
